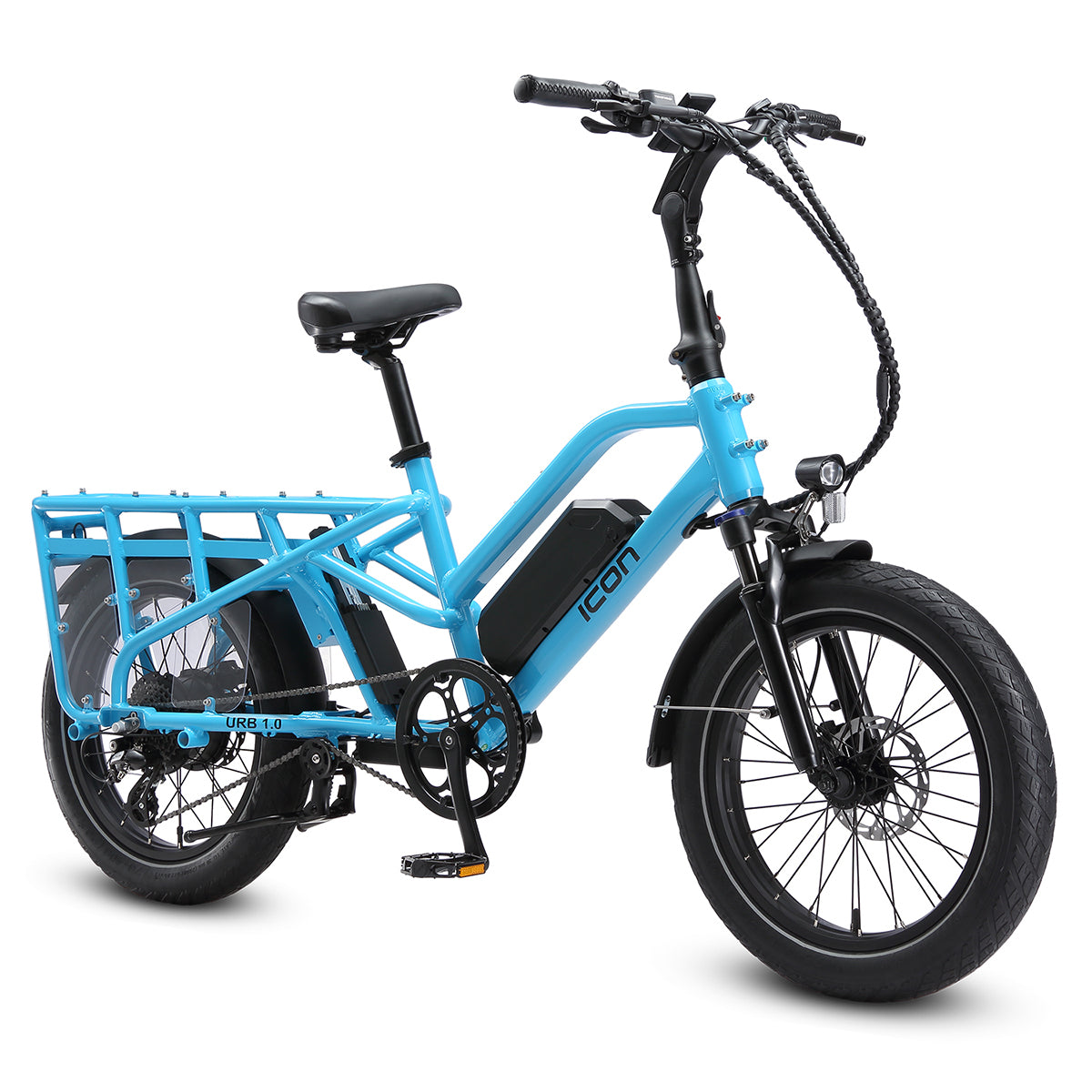

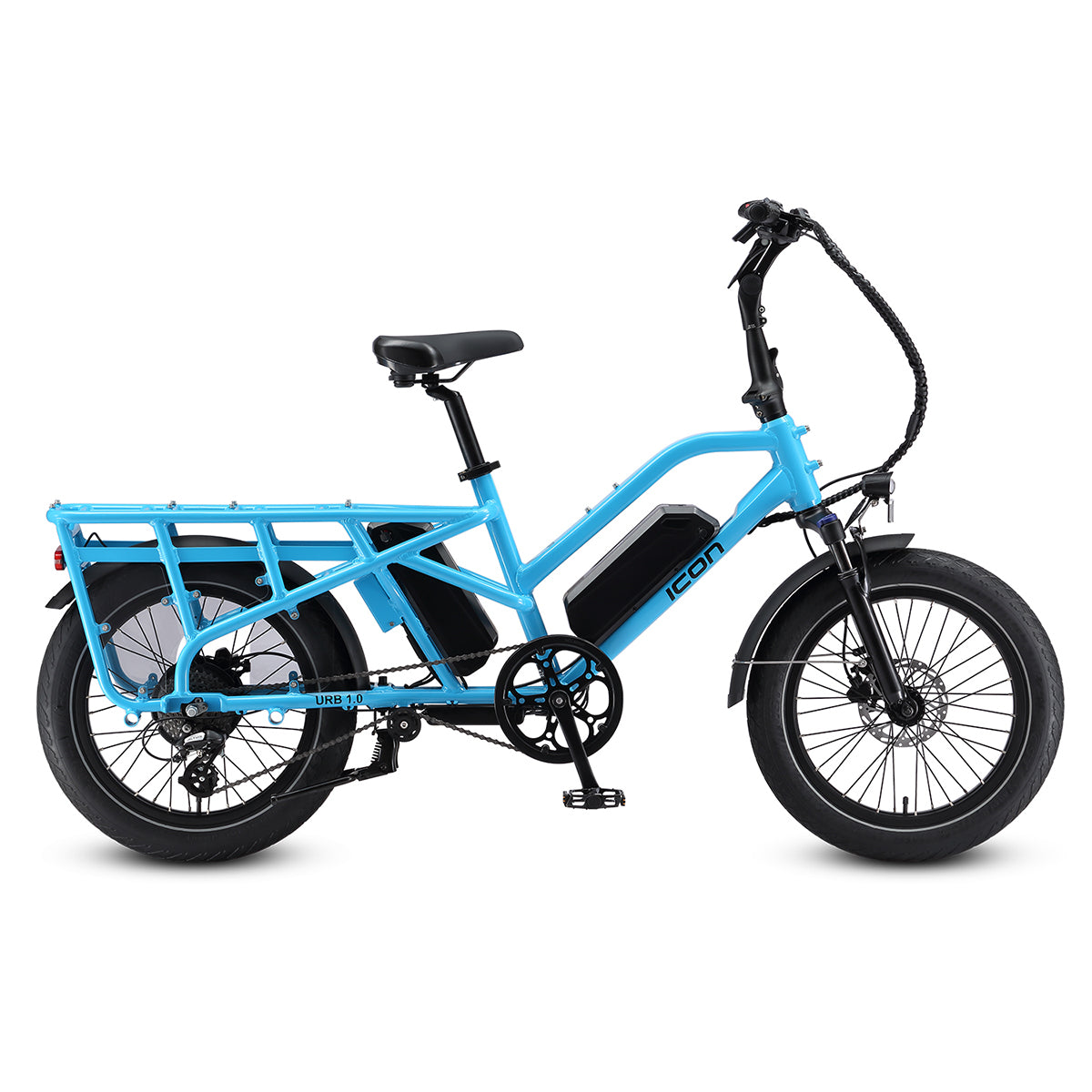

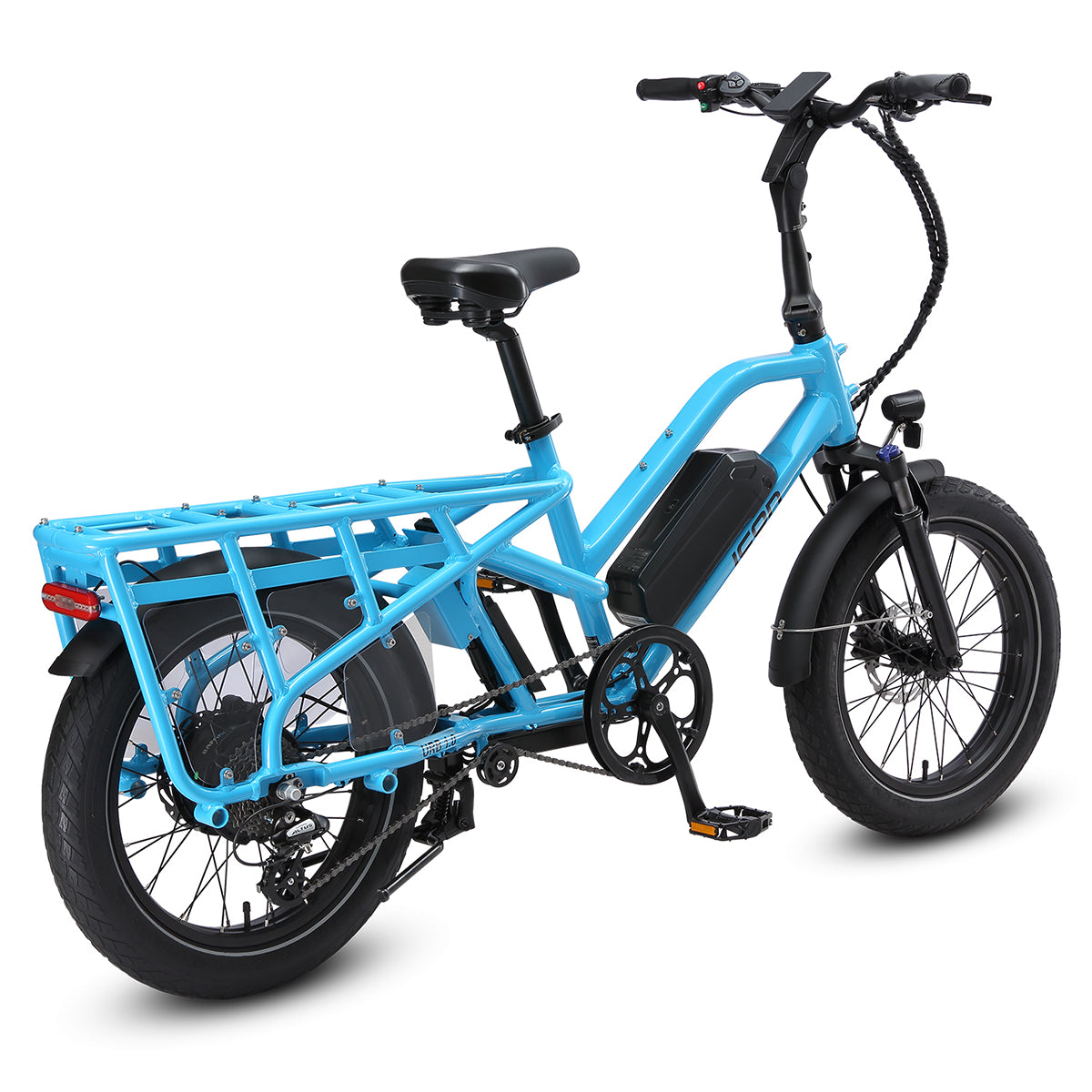

The ICON URB1.0 is a robust electric cargo bike designed for urban utility and versatility. Powered by a 500W motor, it supports dual battery configurations, enabling extended range for longer commutes or heavy-duty tasks. The bike features a Shimano Altus 7-speed drivetrain, offering smooth gear transitions, and is equipped with hydraulic disc brakes for reliable stopping power in various conditions. Its modular frame accommodates multiple attachment options, allowing for customization to suit different cargo needs. Whether for daily errands or commercial deliveries, the ICON URB1.0 combines performance and adaptability for efficient urban transportation.
Find a Retailer
Recommended Retail Prices excludes shipping costs, dealer assembly/prep and accessories. Please speak to your nearest store for more information.
Features
High Performance Motor
The 48V 500W hub motor provides reliable power and smooth acceleration, making it ideal for urban commuting and recreational rides. With its efficient performance, it delivers a balanced combination of speed, torque, and range, offering a comfortable and powerful riding experience..

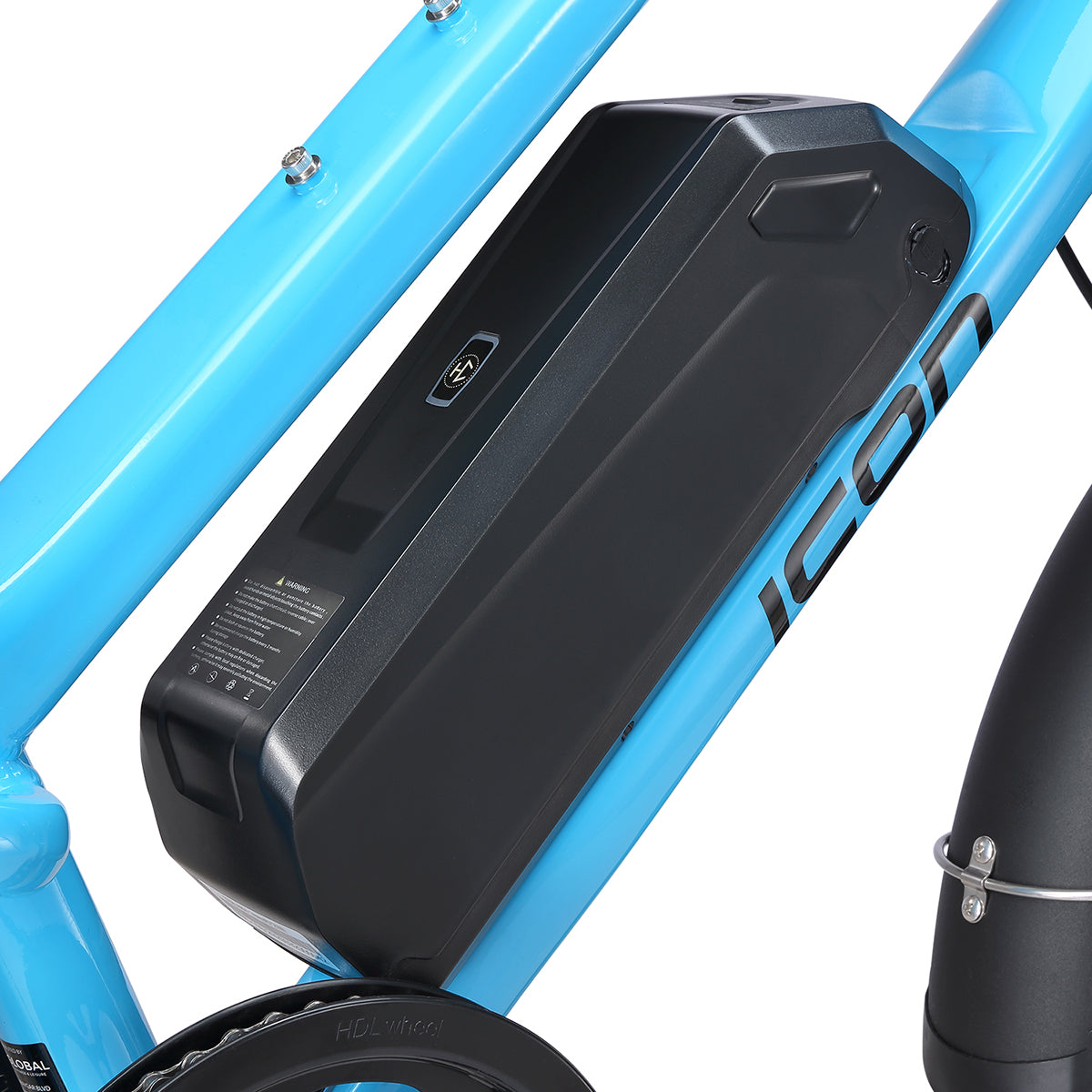

Dual Battery Compatible
The URB 1.0 comes equipped with a powerful 48V 14Ah battery, delivering impressive range and performance right out of the box. For those who need to go even further, it features the option to add a second battery—perfect for long-distance rides or extended daily commutes. With the flexibility to double your capacity, you can ride with confidence knowing extra power is always within reach.

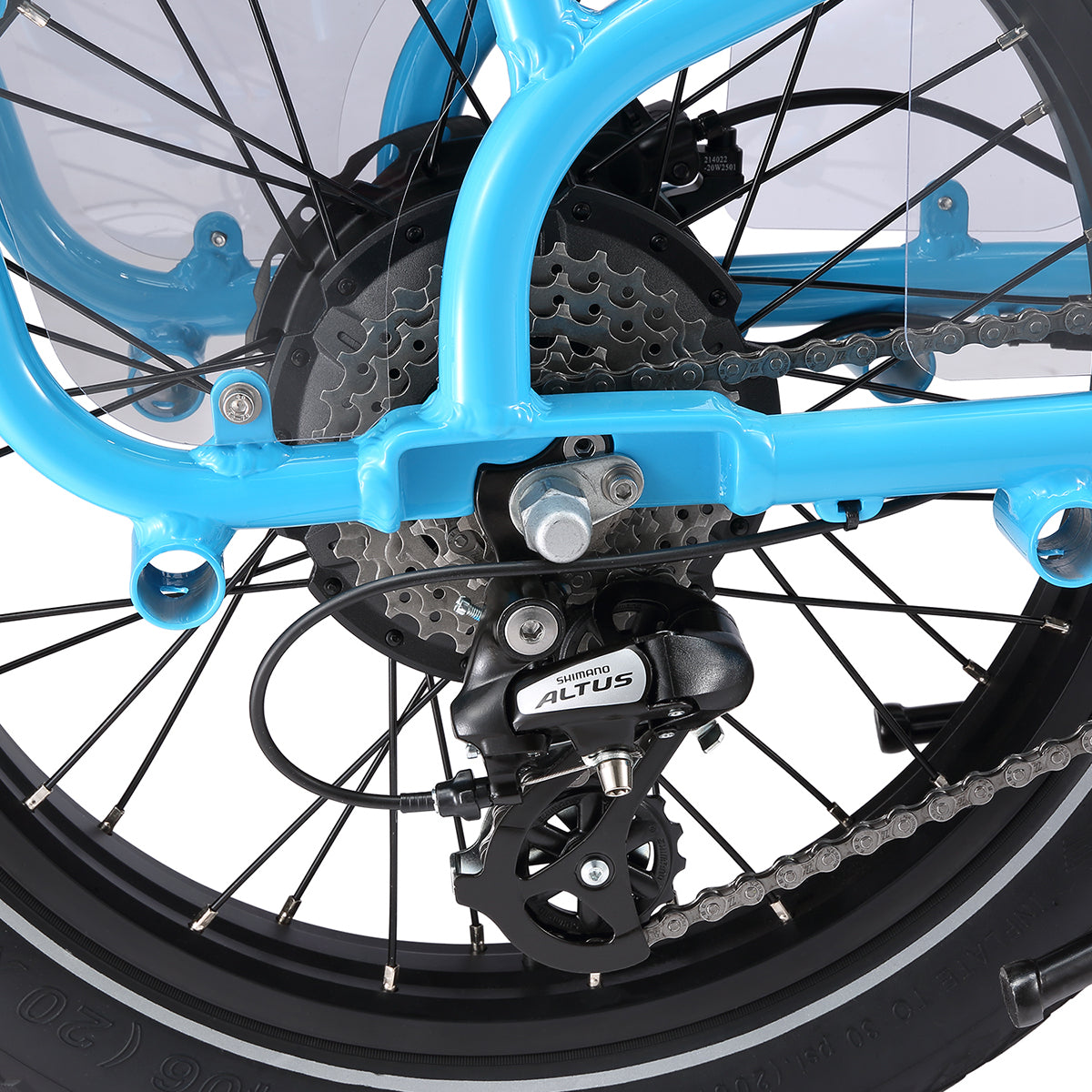

SHIMANO Drivetrain
The Shimano Altus drivetrain offers smooth, reliable shifting and durable performance, making it an excellent choice for cyclists seeking quality and ease of use.
Specifications
| Frame | 20"" Alloy Frame |
| Fork | 20"" Suspension Fork |
| Headset | Integrated |
| Stem 1 | 28.6*45MM |
| Stem 2 | Length 110mm ,H=41, 0° - 90° |
| Handlebar | Alloy 66.5cm Wide |
| Grips | 130mm |

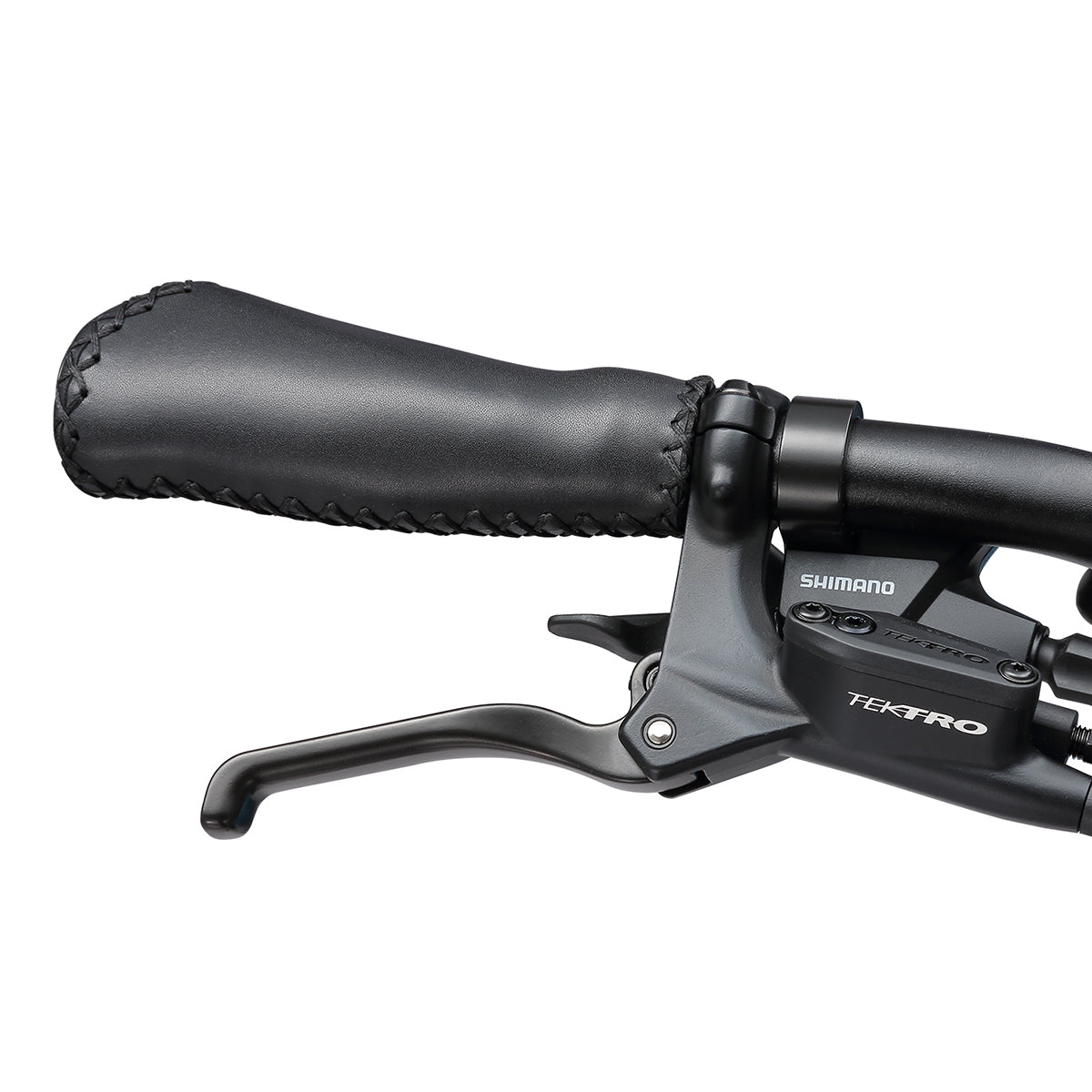

| Brakes | Tektro E350 Electronic hydraulic disc brake |
| Shifters | Shimano 8sp Rapidfire |
| Rear Derailleur | Shimano Altus M310 |
| Cranks & Chainring | 170mm Crank, 52t Chainring |
| Bottom Bracket | BB100 159.5mm |
| Cassette | Shimano HG318 |
| Chain | 1/2""*3/32""*152 |
| Front Hub | 36H |
| Rear Hub | Motor |
| Rims | Single Wall 20 x 3.0 |
| Tires | 20"" x 3.0 |
| Seatpost | 400mm 33.9 |
| Saddle | Black |
| Weight NW | This information isn't available yet. We will update the weight of this model as soon as possible. |
Electrical Components
| Drive System | Bafang G062 48v 500W |
| Battery | LG-3500MAH 48V14AH |

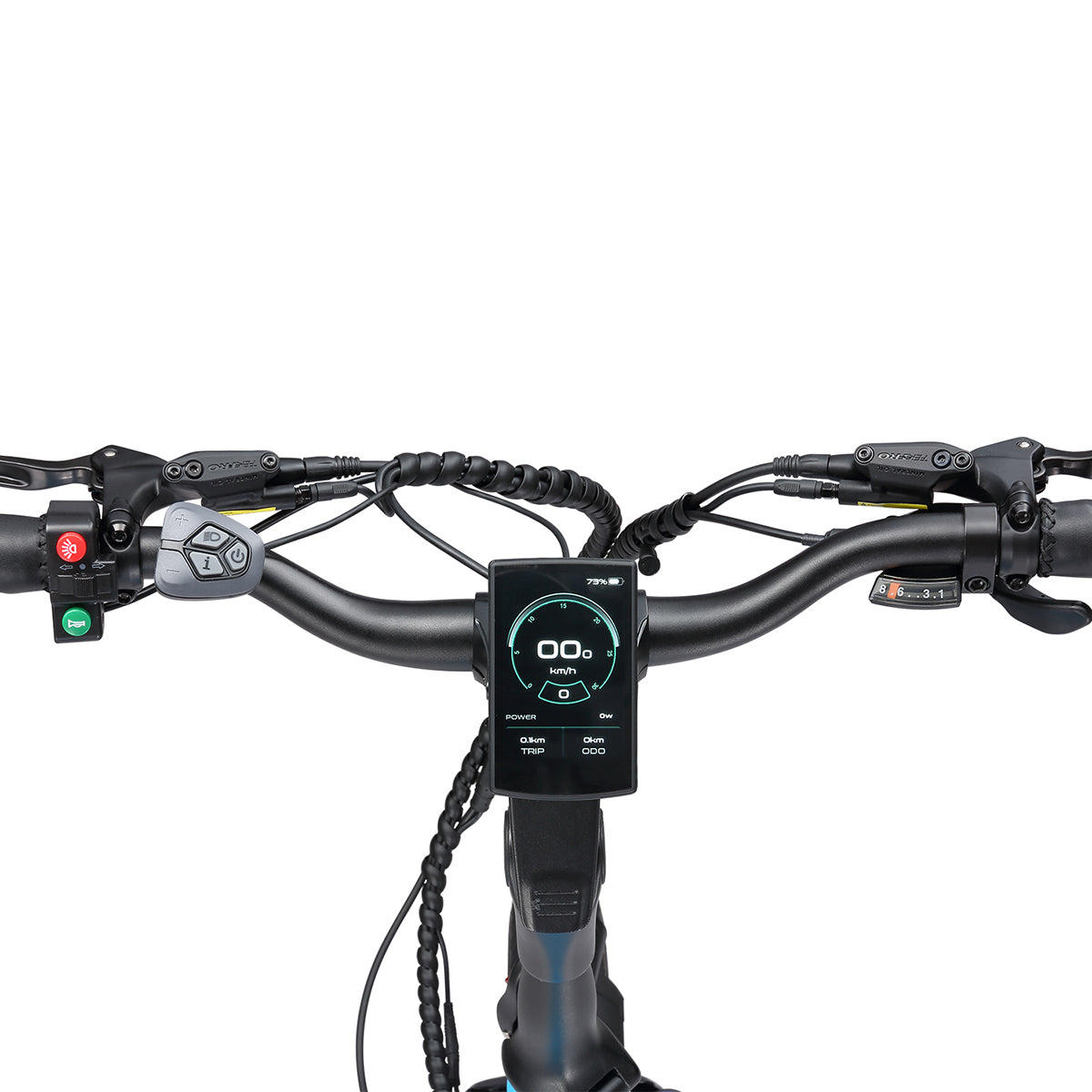

| Display | 48V, LCD |
| Charger | 54.6V 2A |
| Lights | Front and Rear Included |
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
