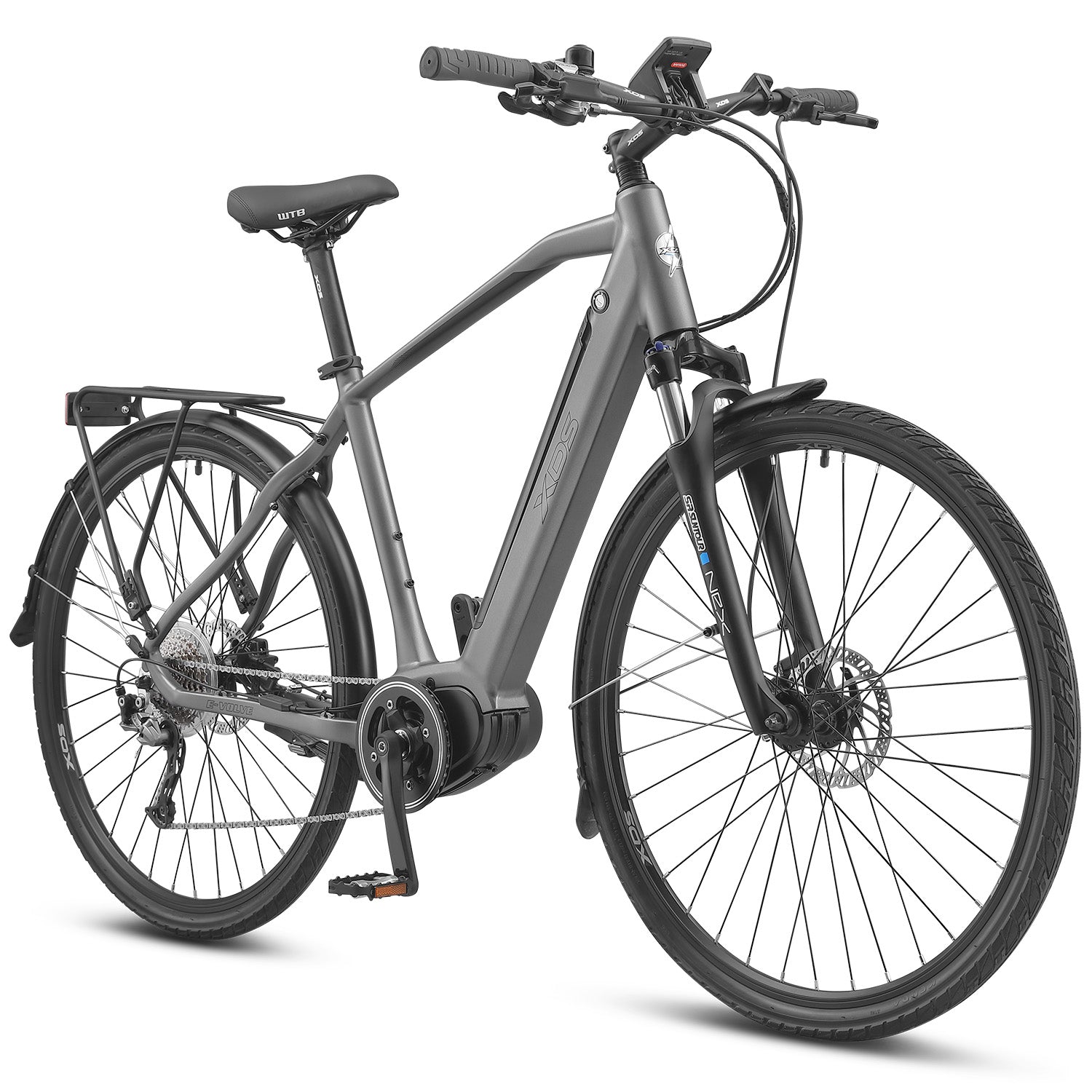

The ultimate hybrid bike, the XDS E-Volve is effortless and reliable in any environment with a Bafang Mid-drive motor, suspension forks, and the revolutionary XDS X6 alloy frame. You’ll always be in control with a Shimano Alivio 9 Speed Drivetrain and unparalleled Tektro Hydraulic Disc Brakes. New Gear Sensor technology supports the longevity of your drivetrain.
Find a Retailer
Recommended Retail Prices excludes shipping costs, dealer assembly/prep and accessories. Please speak to your nearest store for more information.
Summary
Feel the difference with the E-Volve Electric Bike. Tackle the terrain with serious suspension to absorb the bumps, whilst relying on the 9 Speed Shimano Alivio Shadow Drivetrain over any incline. The lightweight X6 Alloy Frame will increase your handling, while the Bafang 250w Electric Motor amplifies your pedaling power - delivering powerful and consistent support every ride.
Features
Revolutionary X6 Ultralight Aluminum Frame
Experience a revolution in lightweight and durable alloy with the unique XDS engineered X6 Ultralight Aluminum Frame. The X6 is a top-tier hydroformed aluminum frame using the composition of the stiffest aluminum to bring you the lightest, highest quality and top-tier reliability. Co-developed with Central South University Aluminum Research Institute for engineering excellence.
Absorb Rough Bumps
Suntour Nex DS HLO suspension forks absorb blows from uneven surfaces, keeping yourself and your frame comfortable during every ride.
Bafang 250w Electric Motor
Go further with a Bafang 250w Electric Motor. Amplify your pedaling power to pick up speed or power through hills with ease to make your cruise or commute effortless.
Specifications
| FRAME SIZE | 16", 18", 20" |
| FRAME | XDS X6 Alloy |
| FORK | Suntour NEX HLO DS 63mm |
| HANDLEBAR | XDS Alloy X6 |
| GRIP | Rubber Comfort |
| STEM | XDS Alloy 28.6mm E:90mm H:41mm |
| SEATPOST | XDS Alloy 31.6 x 350mm |
| SEAT CLAMP | XDS Alloy 34.9mm quick release |
| SADDLE | WTB Comfort Sports |
| GEAR SHIFTER | Shimano Alivio Rapidfire Plus 9 speed |
| REAR DERAILLEUR | Shimano Alivio M4000 Shadow 9 Speed |
| FRONT BRAKE | Tektro HD-M285 Hydraulic with 160mm rota |
| REAR BRAKE | Tektro HD-M285 Hydraulic with 160mm rota |
| FREEWHEEL | Shimano 11-34t 9 Speed Cassette |
| PEDAL | Alloy 9/16 with cromolly axle |
| CHAINWHEEL | Alloy chain wheel 38t with Alloy crank 170mm |
| CHAIN | 1/2 x 11/128 x 120L |
| BOTTOM BRACKET | Bafang |
| HEADSET | Alloy/Steel |
| FRONT HUB | XDS Alloy 36H with Quick Release |
| REAR HUB | XDS Alloy 36H with Quick Release |
| SPOKES | 13G Stainless Steel with brass nipples |
| TYRE | 700 x 40c 30TPI |
| RIM | X-DX17 Alloy 700c x 13g x 36H |
| BELL | Alloy flick |
| CHAINGUARD | Round |
| KICKSTAND | Alloy Adjustable |
| PACK | Alloy/Steel adjustable |
| MUDGUARDS | PVC full length |
| Electrical Components | |
| MOTOR | 36V/250W, 25km max Torque 80 nm |
| BATTERY | 36v/11.6Ah Samsung 2900 battery core |
| TORQUE SENSOR | Bafang SR SD021.01 |
| SHIFT SENSOR | KST 3203A1004 |
| DISPLAY | Bafang LCD Display |
| CHARGER | 36V input |
Specifications are subject to change at any time and without notice. We recommend contacting your Authorised Reseller before purchasing.
Bike Sizing Guide
| Frame Size Number | 18" | 20" |
| Wheel Size | 700c | 700c |
| A - Seat Tube | 46cm | 50.8cm |
| B - Seat Tube Angle | 73.5° | 73.5° |
| C - Head Tube Length | 17.5cm | 17.5cm |
| D - Effective Top Tube | 61.5cm | 63.5cm |
| E - Chainstay length | 50cm | 50cm |
| F - Wheelbase | 118.87cm | 120.86cm |
